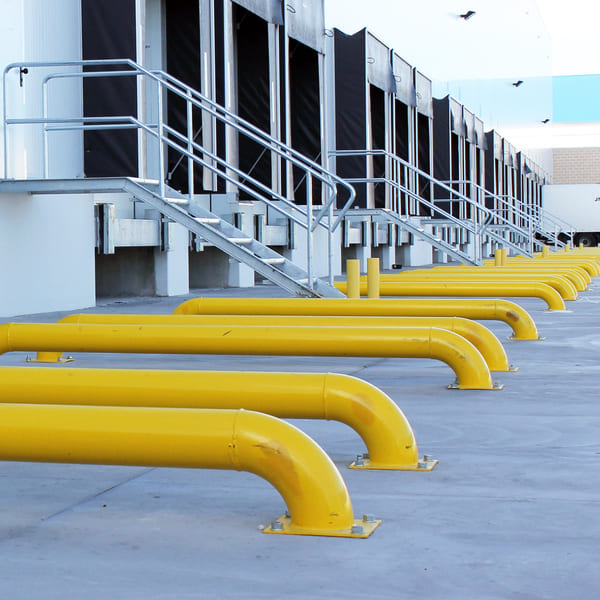

Loading Dock Wheel Guide
BXC Dock Services offers precision-engineered wheel guides that help align trailers accurately at the dock, improving loading and unloading safety and efficiency. These guides reduce the risk of trailer misalignment, preventing damage to your vehicles, equipment, and dock structures. When trailers align properly, seals are tighter, operations run smoother, and overall safety and performance are improved.
Our wheel guides can be customized to match the specific layout of your facility. Adjustable slope, length, and height options make it easy to integrate them into existing docks. Designed to reduce downtime and repair expenses, these systems add long-term value to your operation.
Steel bumper
| Feature | Description |
|---|---|
| Types | Open or straight, tailored to the specific needs of your loading area. |
| Installation Options | Ready to be welded or screwed for ease of use. |
| Finish | Durable anticorrosive finish available in yellow or hot-dip galvanized for long-lasting protection. |
Key dimensions
| Specification | Measurement |
|---|---|
| Total Guide Length | Approximately 89.6″ |
| Mounting Base Width | 55.8″ |
| Total Guide Height (Including Bracket) | 12.6″ |
| Other Dimensions | Additional measurements provided for various guide components, such as the length of the curved sections, hole diameters, etc. |
Design features
| Feature | Description |
|---|---|
| U-Shape Profile | The main guide features a U-shaped profile, designed to fit around a wheel, ensuring proper alignment during docking. |
| Mounting Brackets | The guide includes mounting brackets at both ends, with holes for securely attaching it to the vehicle body or dock structure. |
| Curved Sections | The guide has curved sections at both ends, serving a specific function in aligning the wheels during loading and unloading. |
