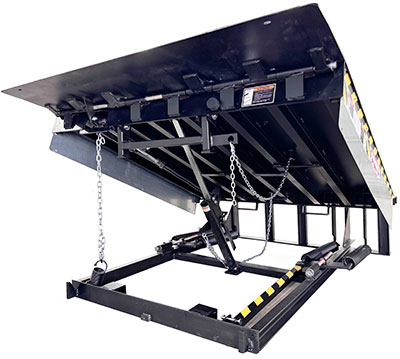

Mechanical dock levelers
BXC Dock Services offers mechanical dock levelers that combine safety, strength, and performance—making them a reliable option for most commercial docks. These cost-effective levelers create a secure link between truck beds and the dock, handling differences in height with durability and ease.
Built to last and simple to use, our mechanical dock levelers use a pull-chain system to raise the deck. Operators can then lower it to meet the trailer bed or return it to its resting position. These models feature a positive lip extension and solid hold-down system, making them dependable under varying conditions. Their manual design keeps costs low while ensuring everyday performance.
Standard features
Our pit-mounted mechanical dock levelers don’t require electricity, thanks to their manual operation. A frame is needed for pit installation.
| Construction: | |
|---|---|
| Platform: | 3/4” diamond plate |
| Lip: | 1/2” diamond plate |
| Available widths: | 6 and 7 feet |
| 6-foot model: | 8 I-beam joists, 4 inches each |
| 7-foot model: | 10 joists |
| Reinforced center section for 3-wheel forklifts | |
| Lifting system: |
|---|
| Operates with 4 traction springs and 2 pneumatic cylinders for the lip. |
| Platform locking system when at rest. |
| Dimensions: | |
|---|---|
| Maximum width: | 7 feet |
| Maximum length: | 8 feet |
| Capacity range: | 35,000 – 60,000 lbs |
| Finish: |
|---|
| Treated with an anti-corrosion system and powder-coated with oven-polymerized paint. |
| Optional hot-dip galvanized finish |
| Reinforced hinges (3 on rear) for added strength |
Our manual dock levelers are safe, rugged, and budget-friendly—ideal for bridging gaps between docks and trucks during everyday loading operations.
